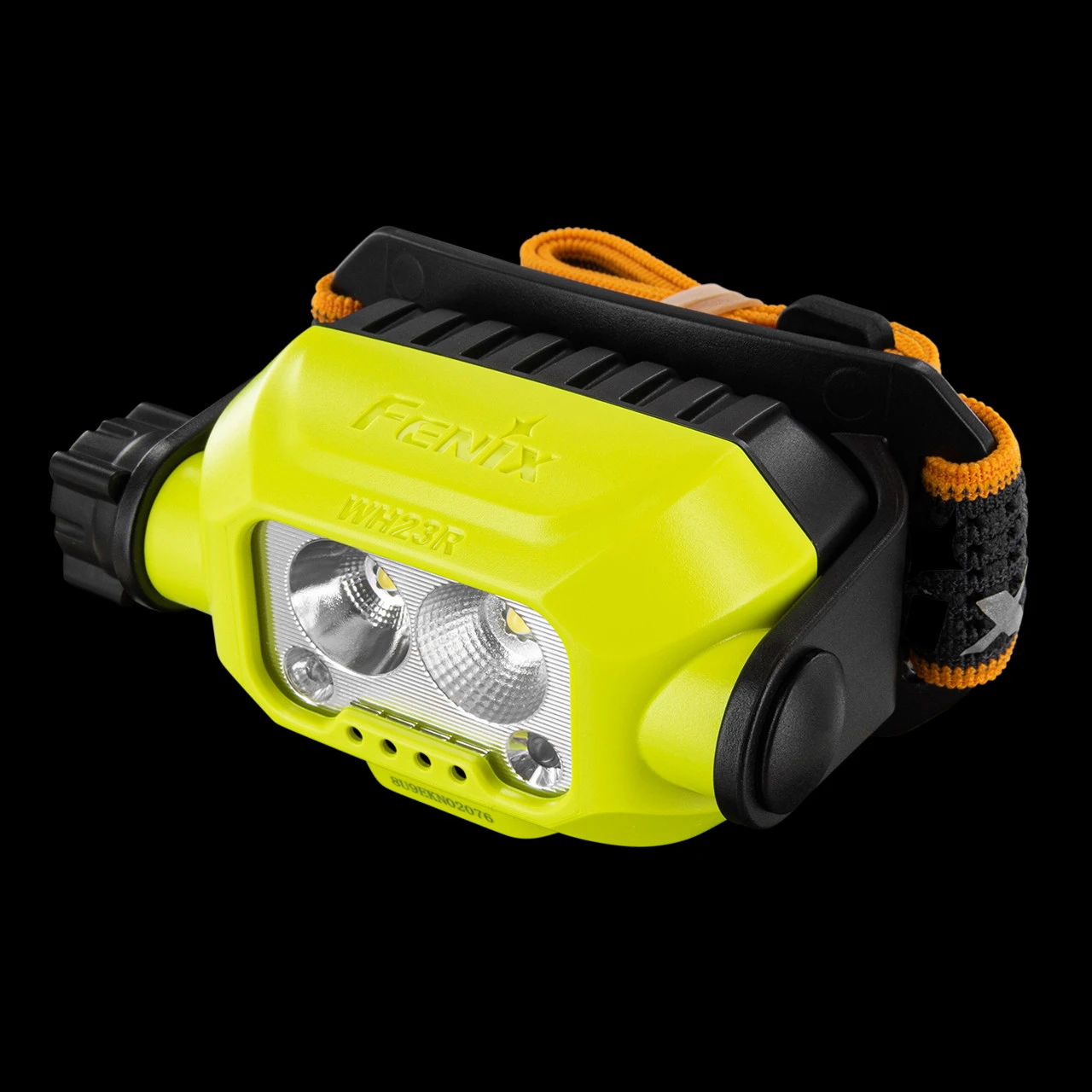

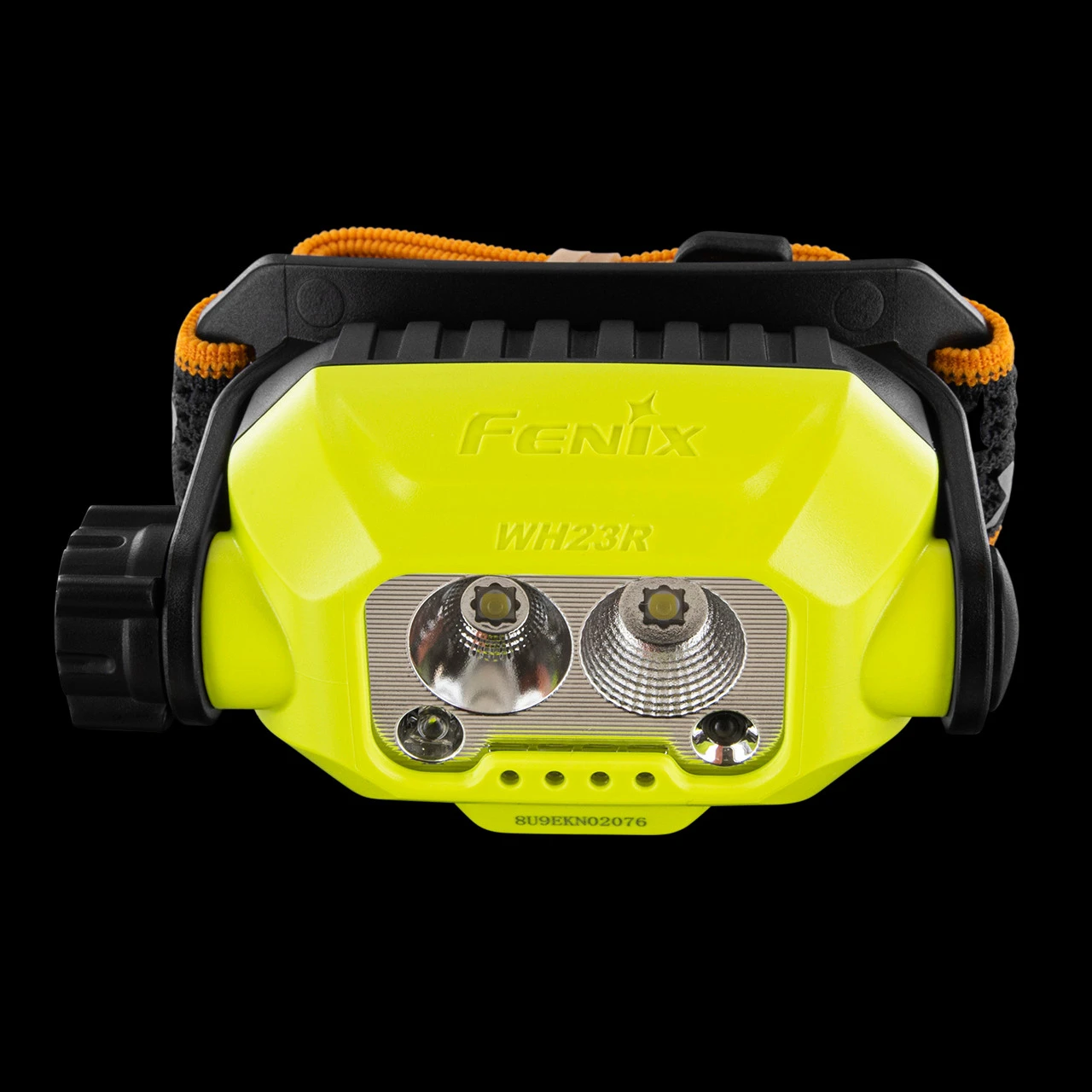

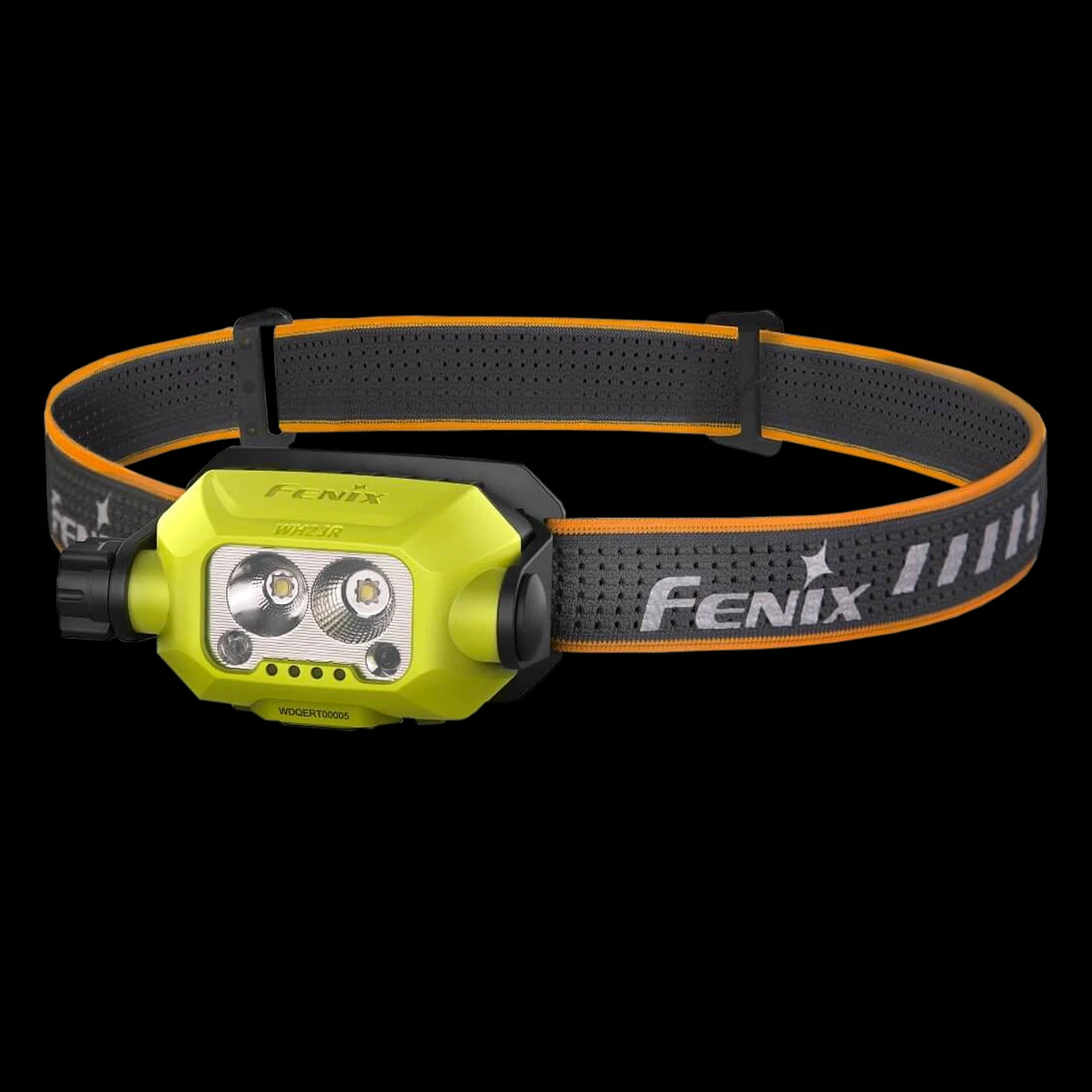

Fenix WH23R Rechargeable Gesture Sensing Headlamp

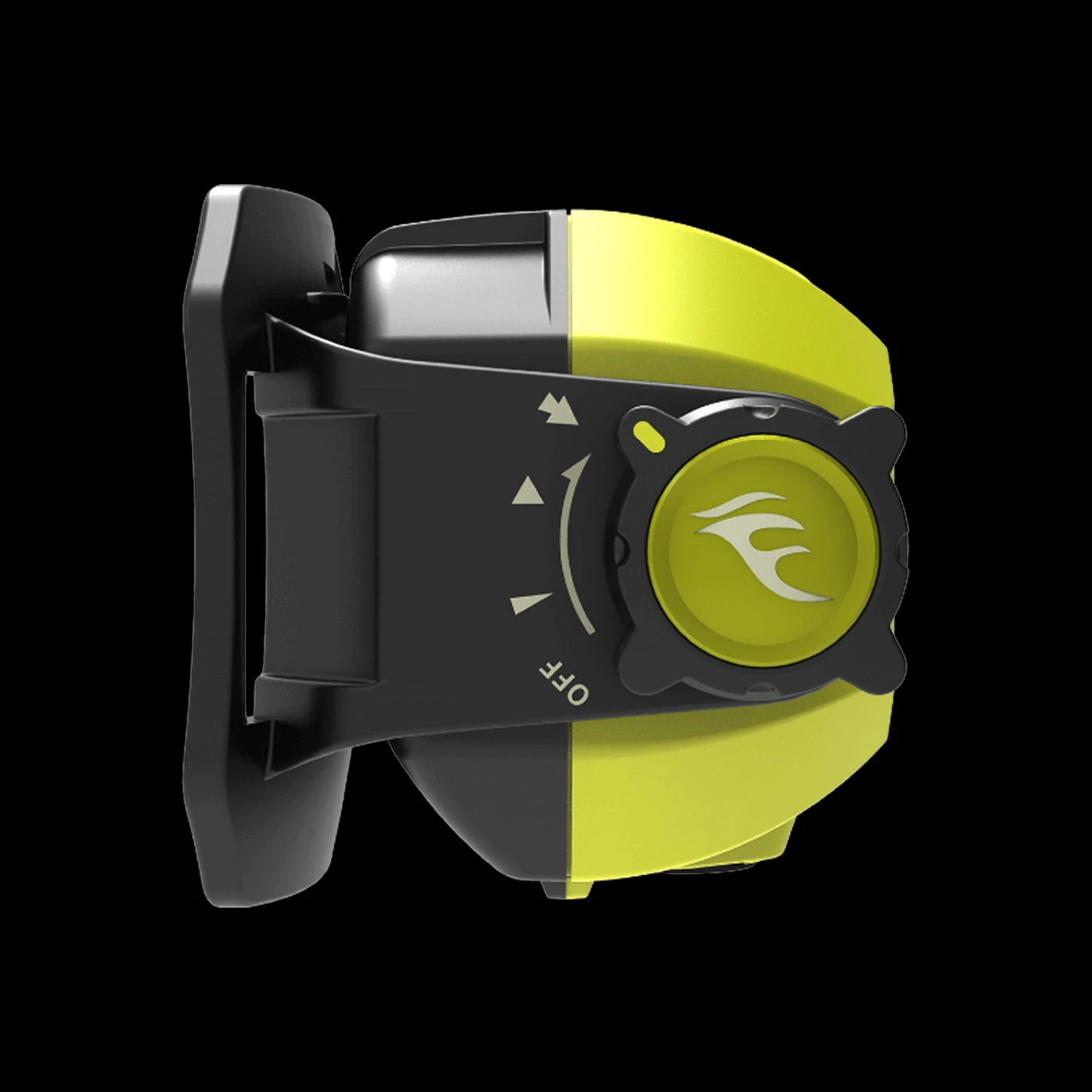

Fenix WH23R is a compact, durable headlamp designed for tough industrial use. The light features a rotary switch to select lighting modes (spot – flood – both) plus a central push button to change brightness level / operate the wave sensor activate – deactivate functions.

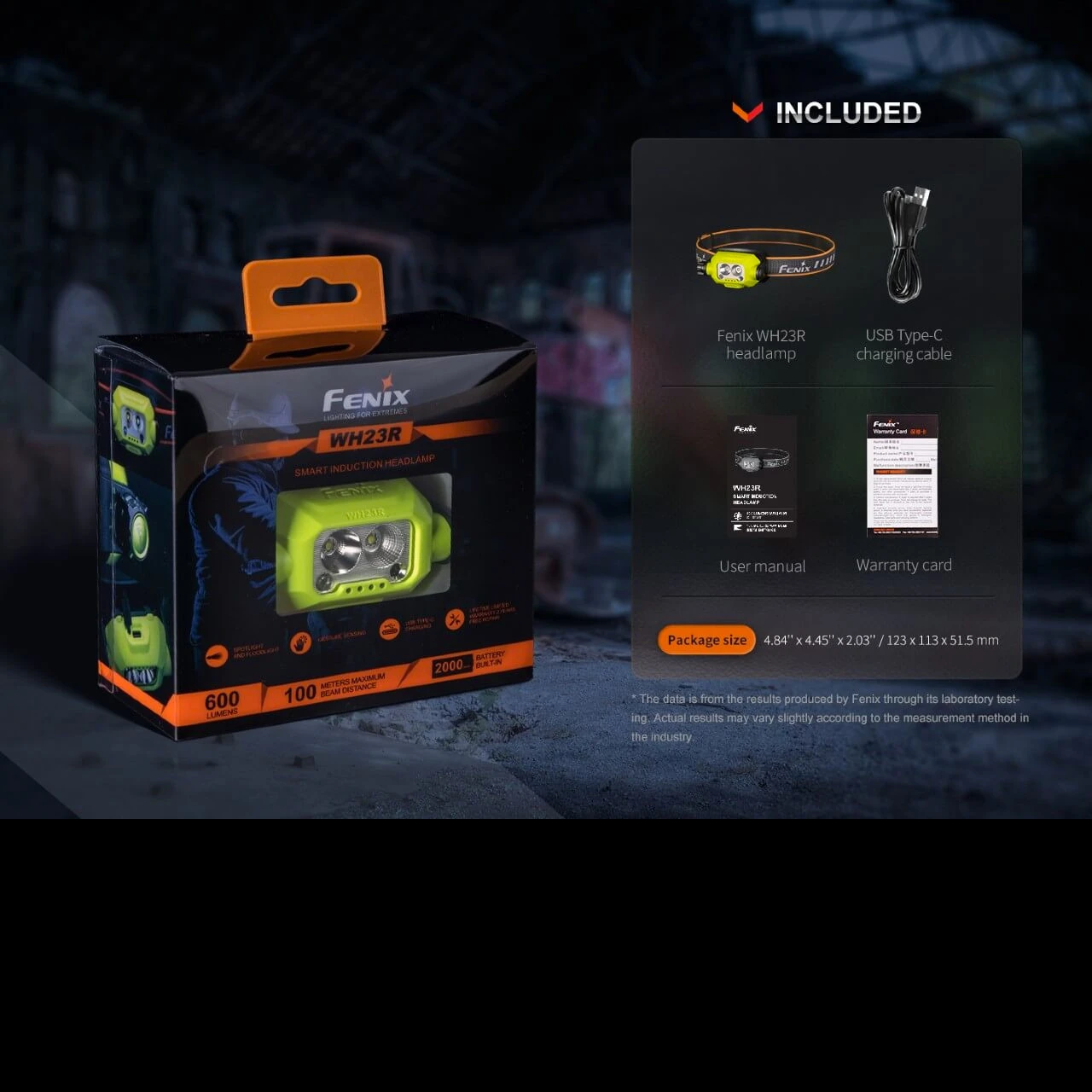

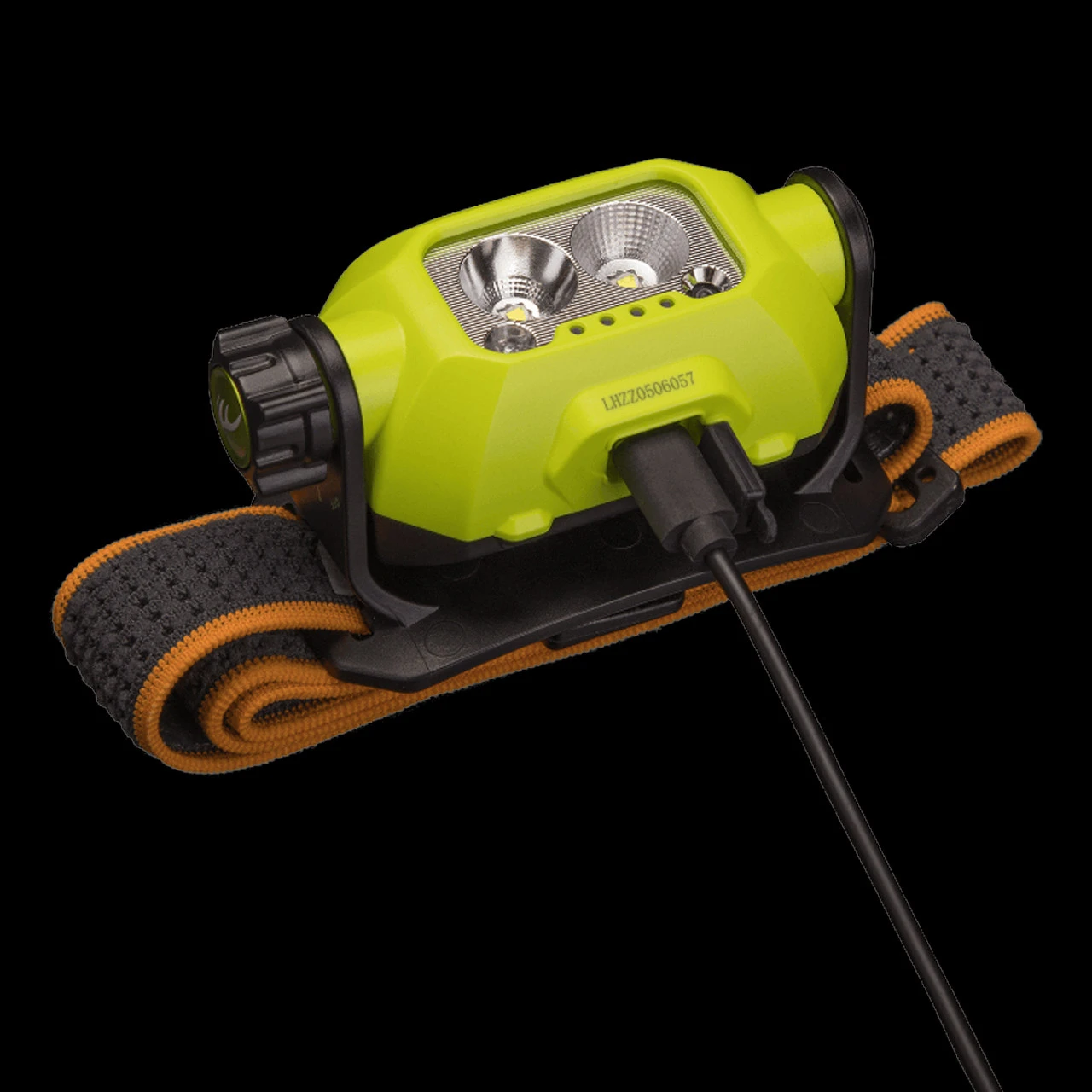

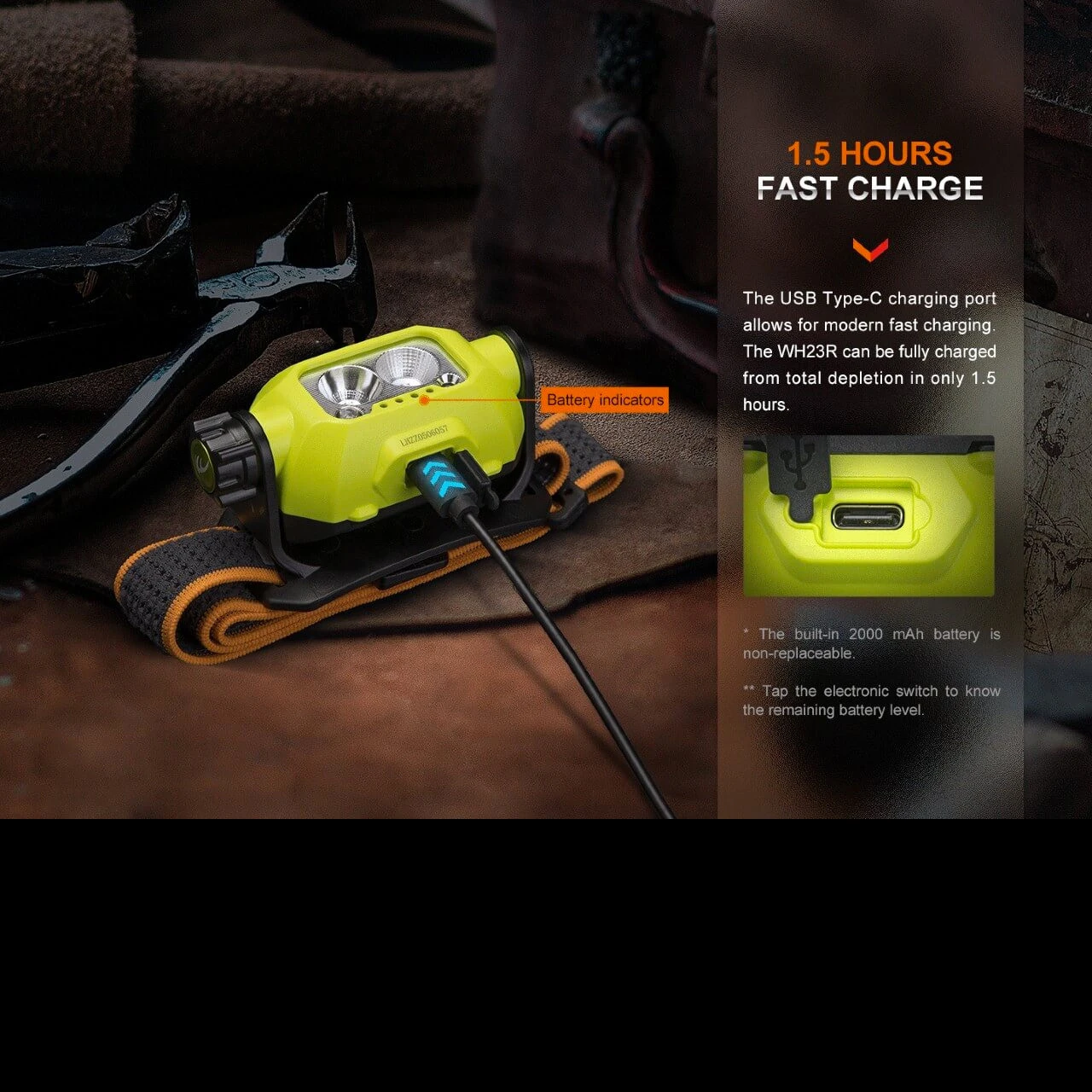

WH23R is powered by a built-in 3.7v, 2000 mah Li-po battery, charged in 1.5 hours from empty via the included USB-C cable and your mobile phone charger or power bank. A 4 level LED power meter indicates remaining battery power and charging status. The light is able to operate at its lowest brightness level whilst charging.

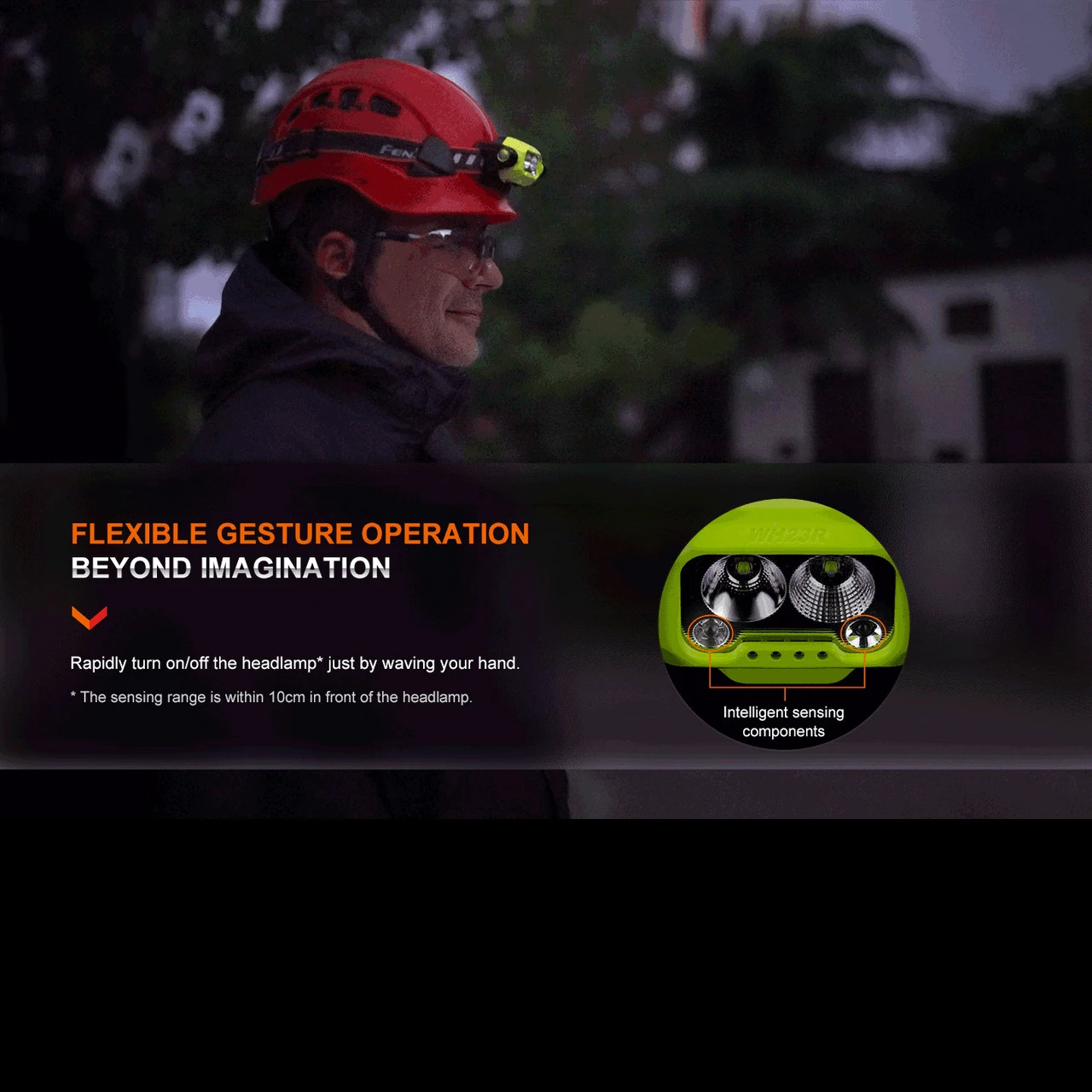

A front facing IR sensor can be used to rapidly switch the light on and off by waving your hand across the headlamp face. It has an operating range of approx 10cm. This function can be disabled if preferred.

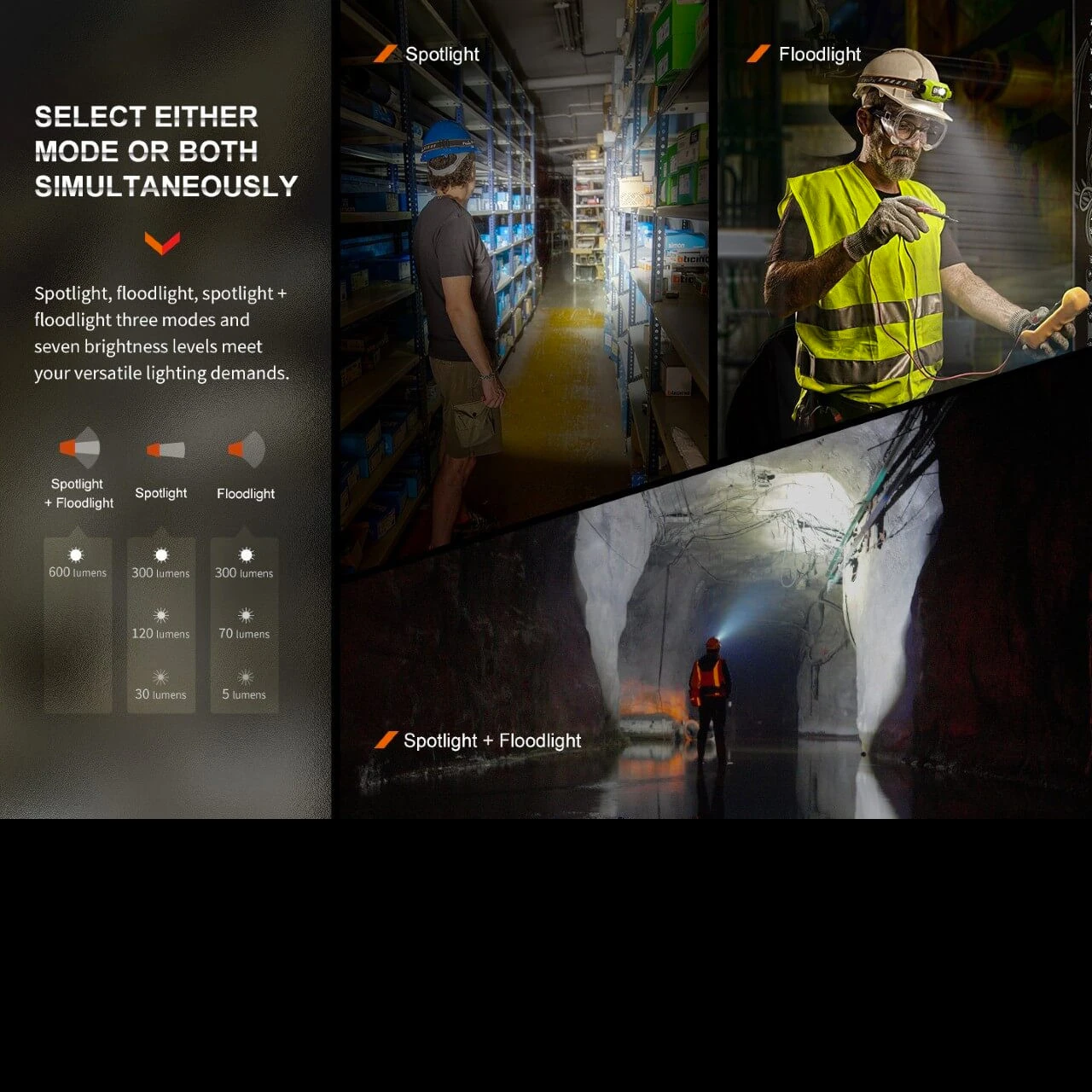

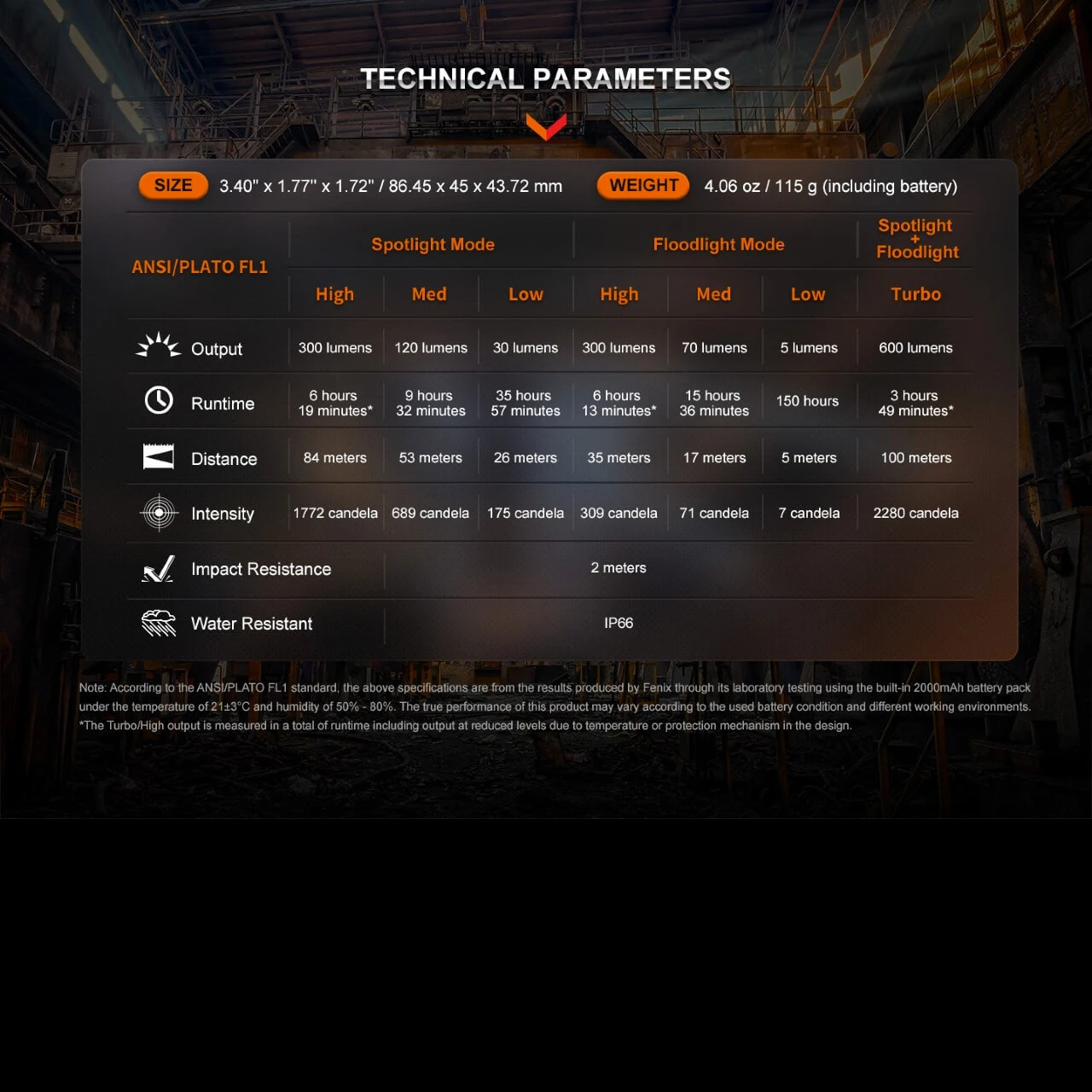

Main beam:

The main 300 lumen LED and reflector provide a balanced combination of spot and area spill light, lighting near and far at the same time. Safe illumination for a multitude of tasks.

• Low – 30 lumens (35.9 hrs) – 26m beam
• Med – 120 lumens (9.5 hrs) – 53m beam
• High – 300 lumens (6.3 hrs) – 84m beam

Pure flood beam:

The WH23R’s 100 degree wide angle pure flood beam offers 3 output levels. From a low level close working beam to a smooth general working beam with no hot spot, the flood light has you covered.

• Low – 5 lumens (150 hrs) – 5m beam
• Med – 70 lumens (15.5 hrs) – 17m beam
• High – 300 lumens (6.25 hours) – 35m beam

Combined beams:

Maximum power output for a boost in brightness:

• 600 lumens – (3.8 hrs)  total run time

Please note that run times are total time measured at a constant setting with no brighness level or mode adjustments made.

Other features:

• Digitally regulated – maintains constant output in mid and low brightness settings
• Mode memory – remembers last used lighting level
• Switches are easy to operate, even with gloved hands
• LED battery level / charging indicator
• Electonic overheat protection
• Perforated, breathable comfort headband
• Flourescent body and reflective strips on headband for added visibility and safety
• 2m impact tested for durability

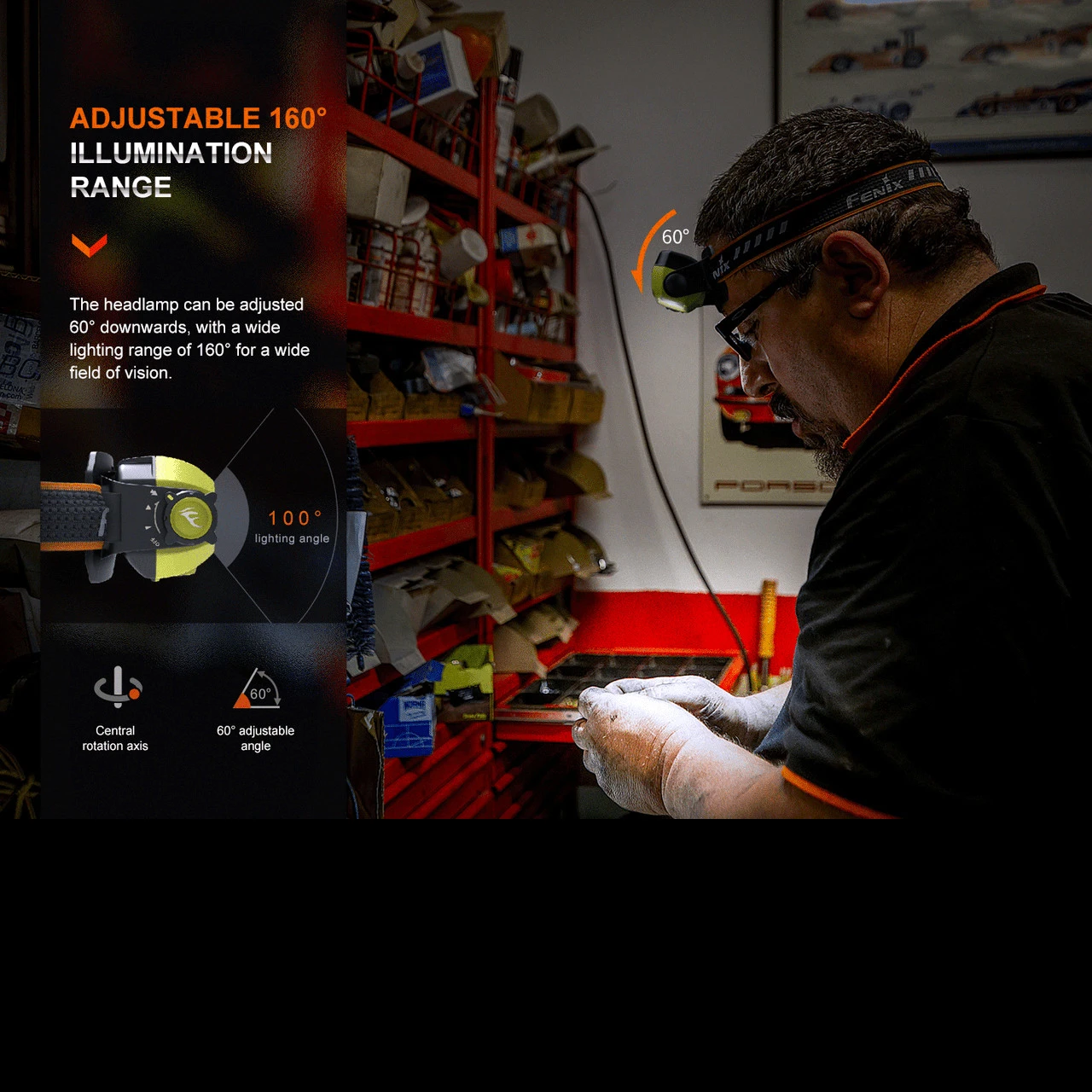

• 60 degree tilt mechanism for ideal beam alignment
• Weatherproof (IP66) for harsh outdoor conditions
• Fits Fenix ALG-03 and ALG-04 helmet mounts – great for hard hats
